TriGuard-750 Turnstiles

TriGuard-750 Turnstiles

Model No: TRP-D750-TNS

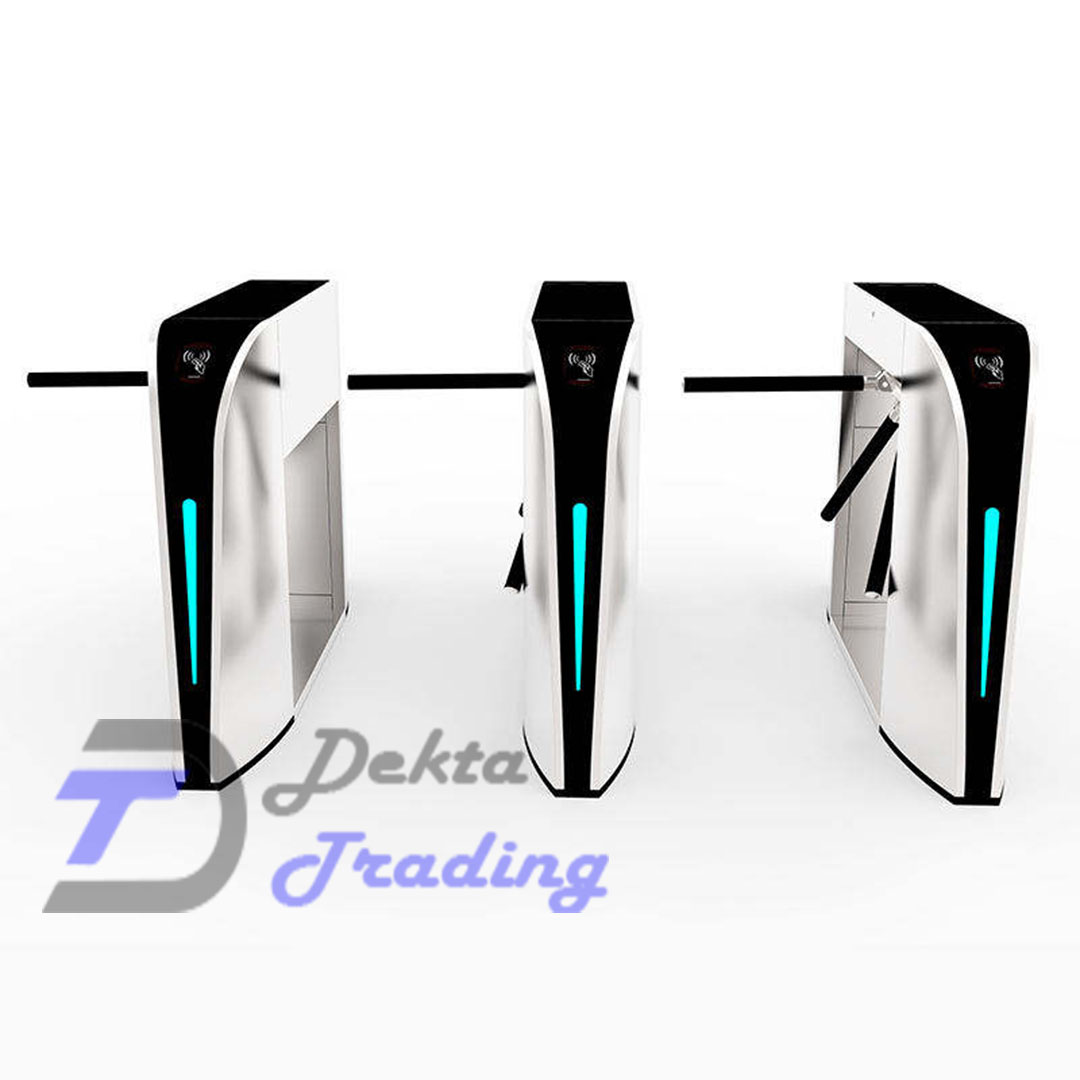

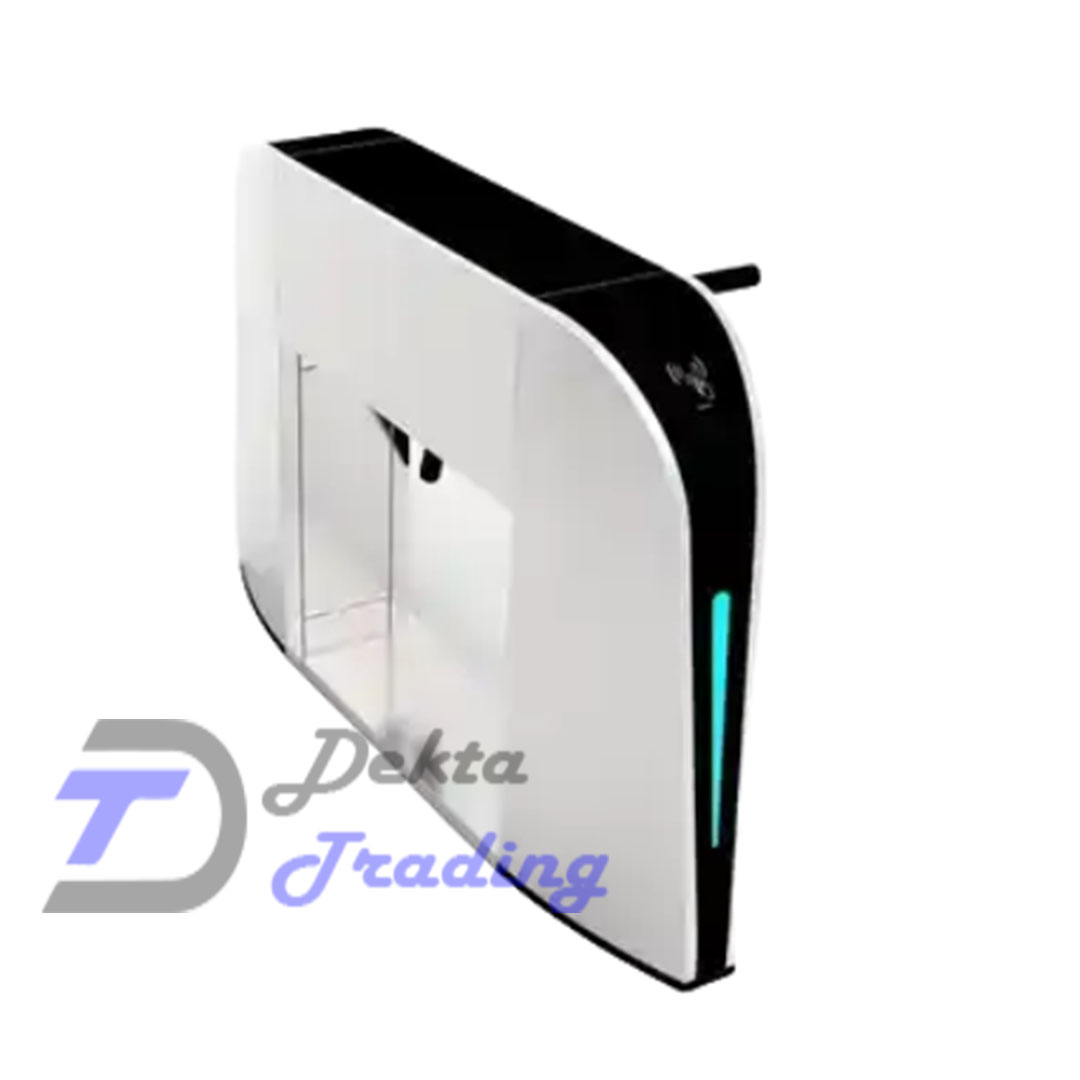

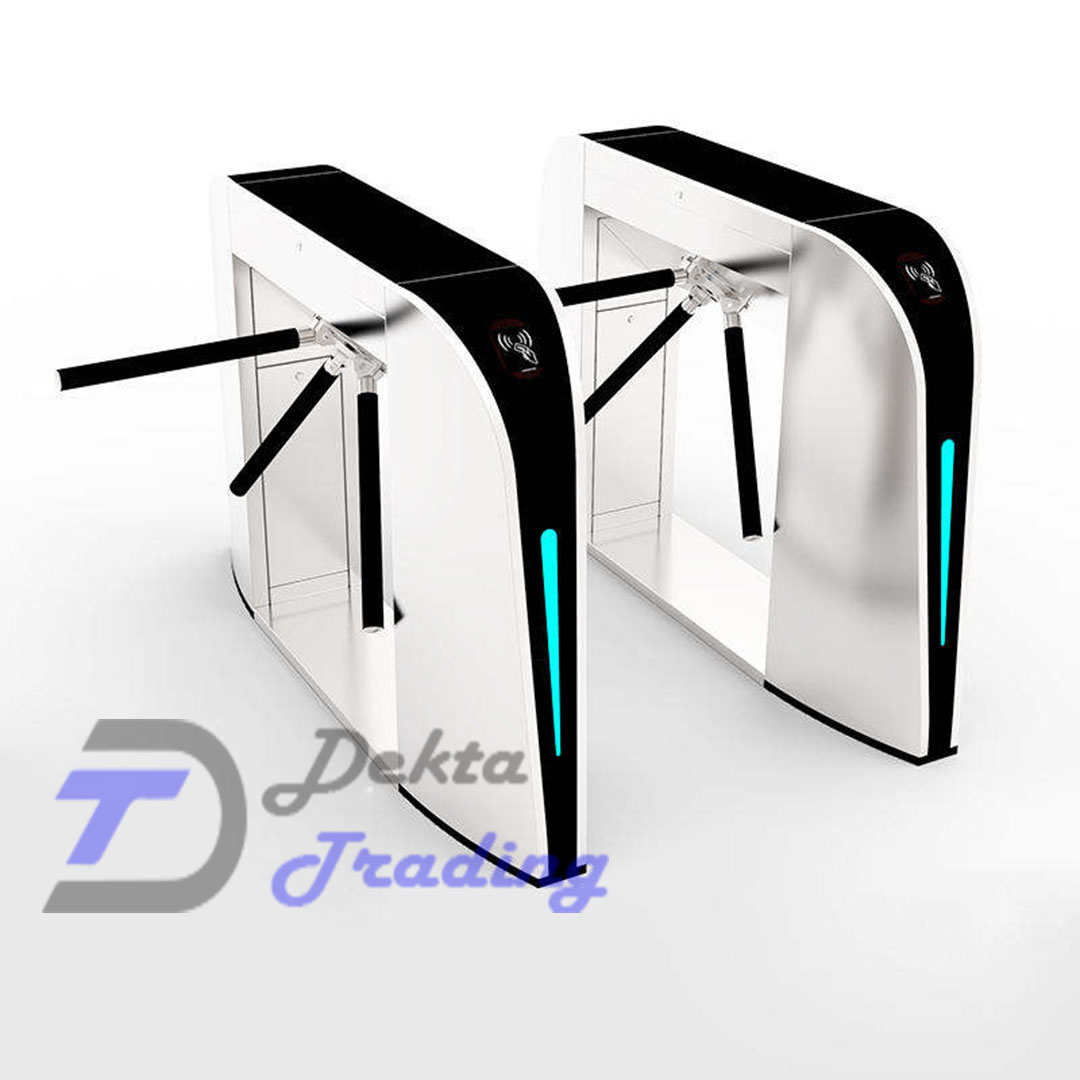

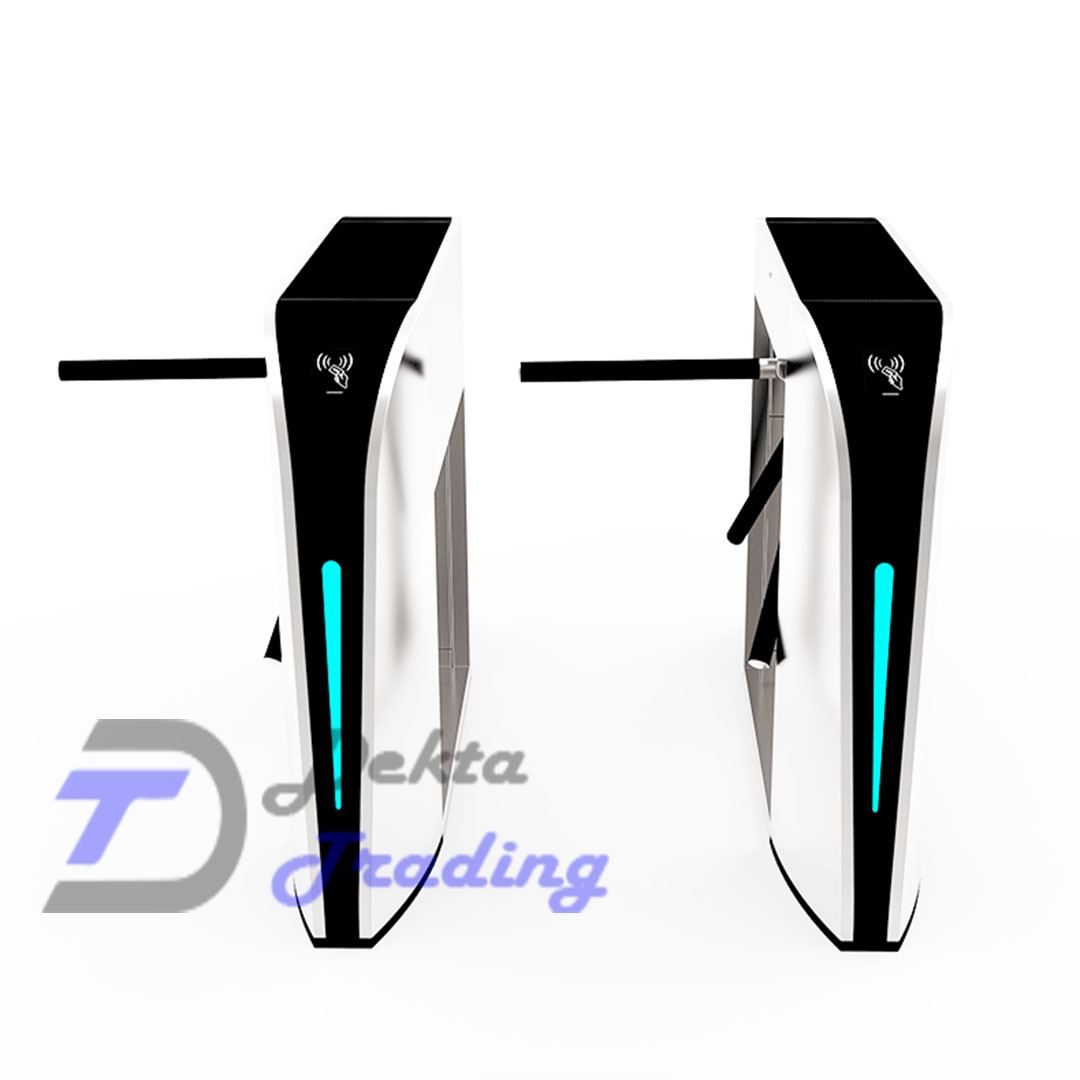

The TriGuard-750 Turnstile is a sleek, high-performance access control solution designed to manage pedestrian flow efficiently while enhancing security in high-traffic areas. Its compact and robust design makes it ideal for a wide range of applications, including office buildings, stadiums, public transportation hubs, gyms, and industrial facilities.

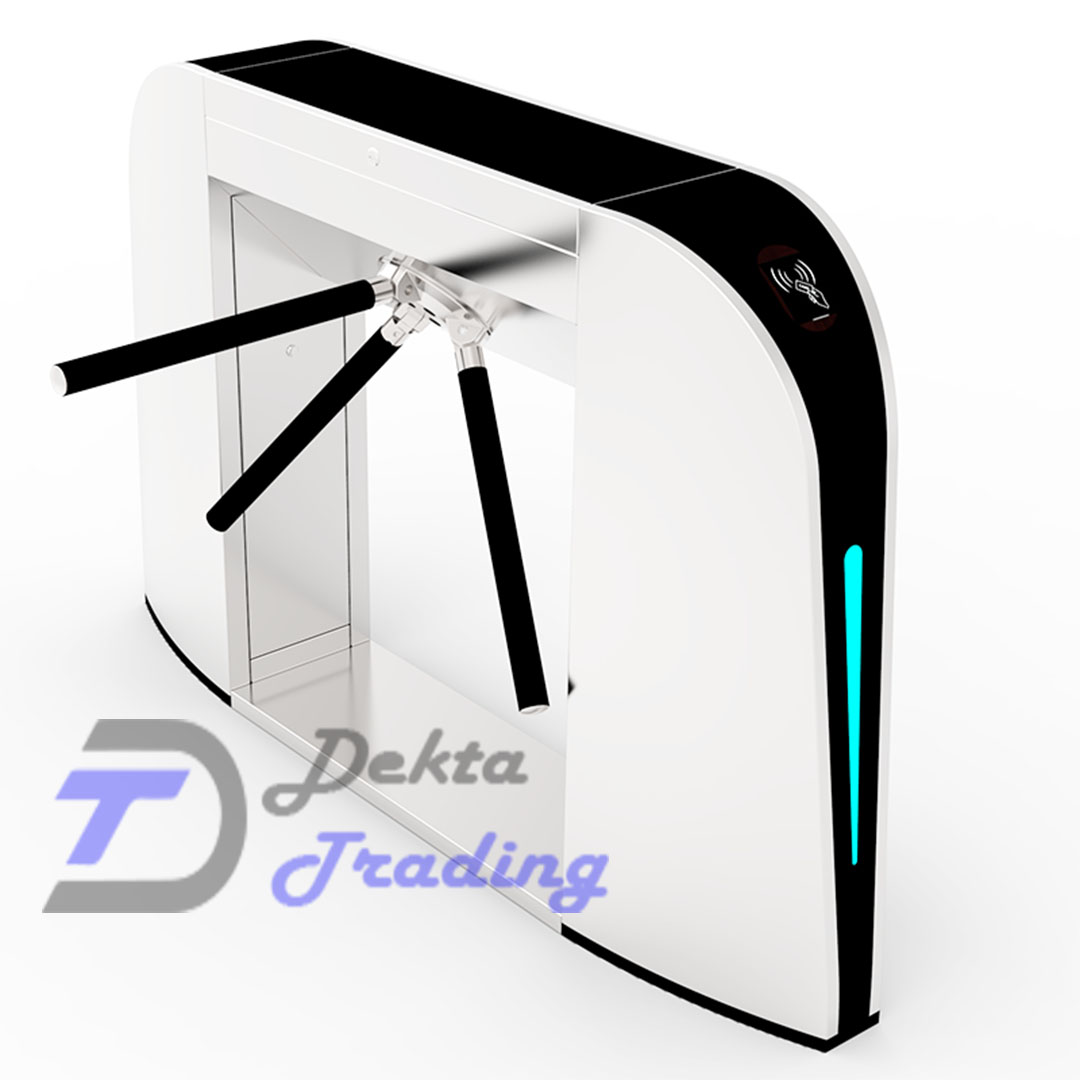

Featuring a three-arm rotating mechanism, the turnstile allows controlled entry and exit, ensuring only authorized individuals gain access. The tripod design is both space-saving and durable, constructed from high-quality materials such as stainless steel or powder-coated aluminum for long-lasting performance in indoor or outdoor environments.

The TriGuard-750 Turnstile combines security, efficiency, and style, making it an excellent choice for organizations looking to streamline access management while maintaining a professional appearance. Whether used as a standalone unit or integrated into a larger security system, this turnstile delivers unmatched performance and peace of mind.

  • Technical Specifications
  • Key Features

Operation: Full-automatic.

Flap opening: 0.2 seconds.

Access control: QRcode.

Pass speed: 35-40 persons/min.

Direction: Single or bi-directional.

Single gross weight: 120 kg.

Electromotor: Brushless motor 24V 40W.

Temperature: Indoor /outdoor -10℃-50℃.

Dimension: Width 1200mm Depth 280mm and 980mm Height.

Environment: Indoor or outdoor ( use a canopy cover).

LED light: Entry or no-entry display direction arrows are available.

Material: SUS304 Stainless steel optional with SUS316L.

Voltage: AC 220V/110V ±10% 50/60MHZ (Specify when ordering).

Input interface: Dry contact signal pr +12V signal or pulse.

* Access Control Integration: Compatible with RFID cards, biometric scanners, barcode readers, and other access control systems for seamless user authentication.
* Directional Control: Configurable for entry-only, exit-only, or bidirectional operation to suit your security needs.
* High Durability: Built to withstand heavy usage and harsh weather conditions, ensuring reliability over time.
* Customizable Design: Available in various finishes and heights to match your facility’s aesthetics.
* Safety Features: Equipped with anti-panic functionality and emergency release options for safe evacuation during emergencies.
* Low Maintenance: Engineered for minimal upkeep, reducing operational costs.
