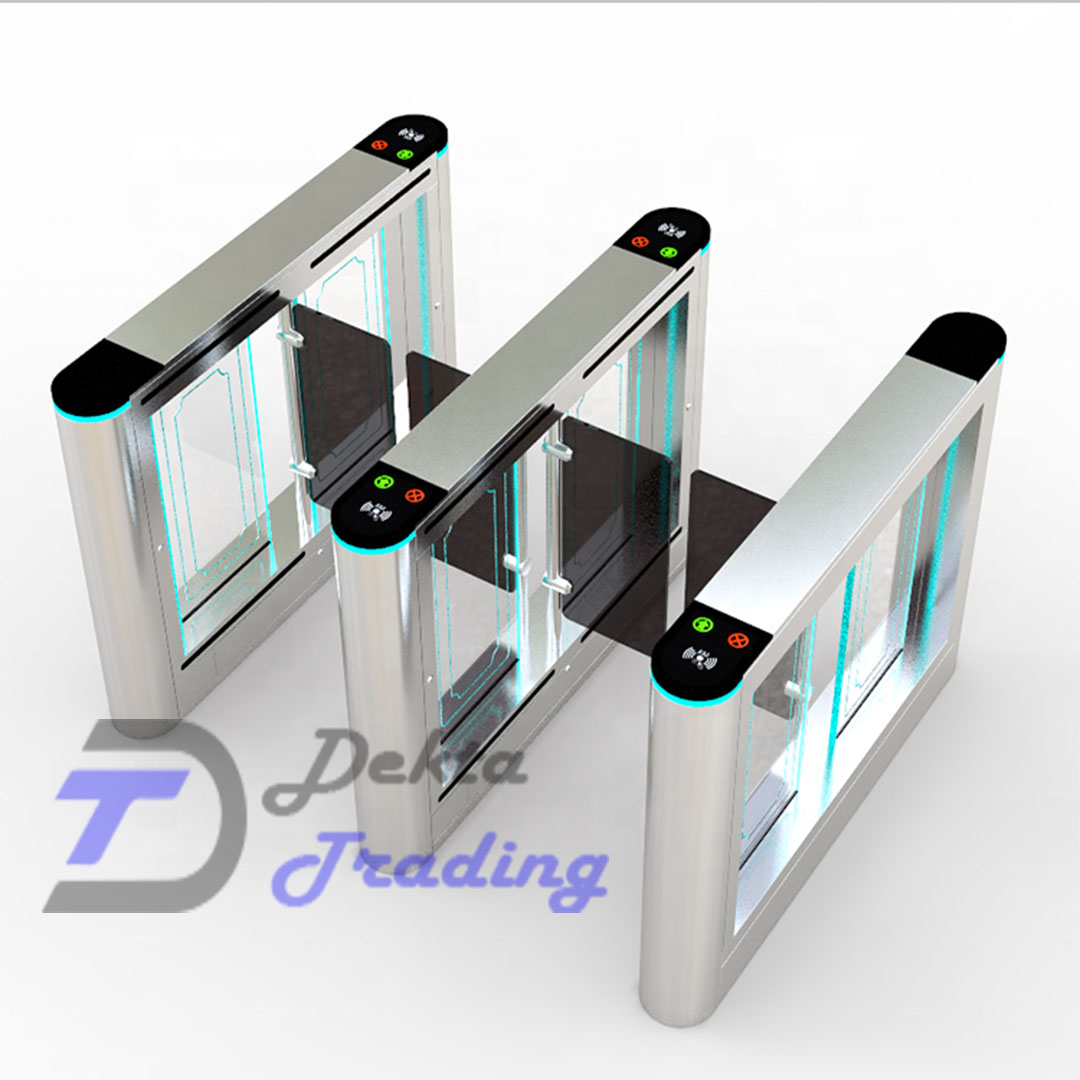

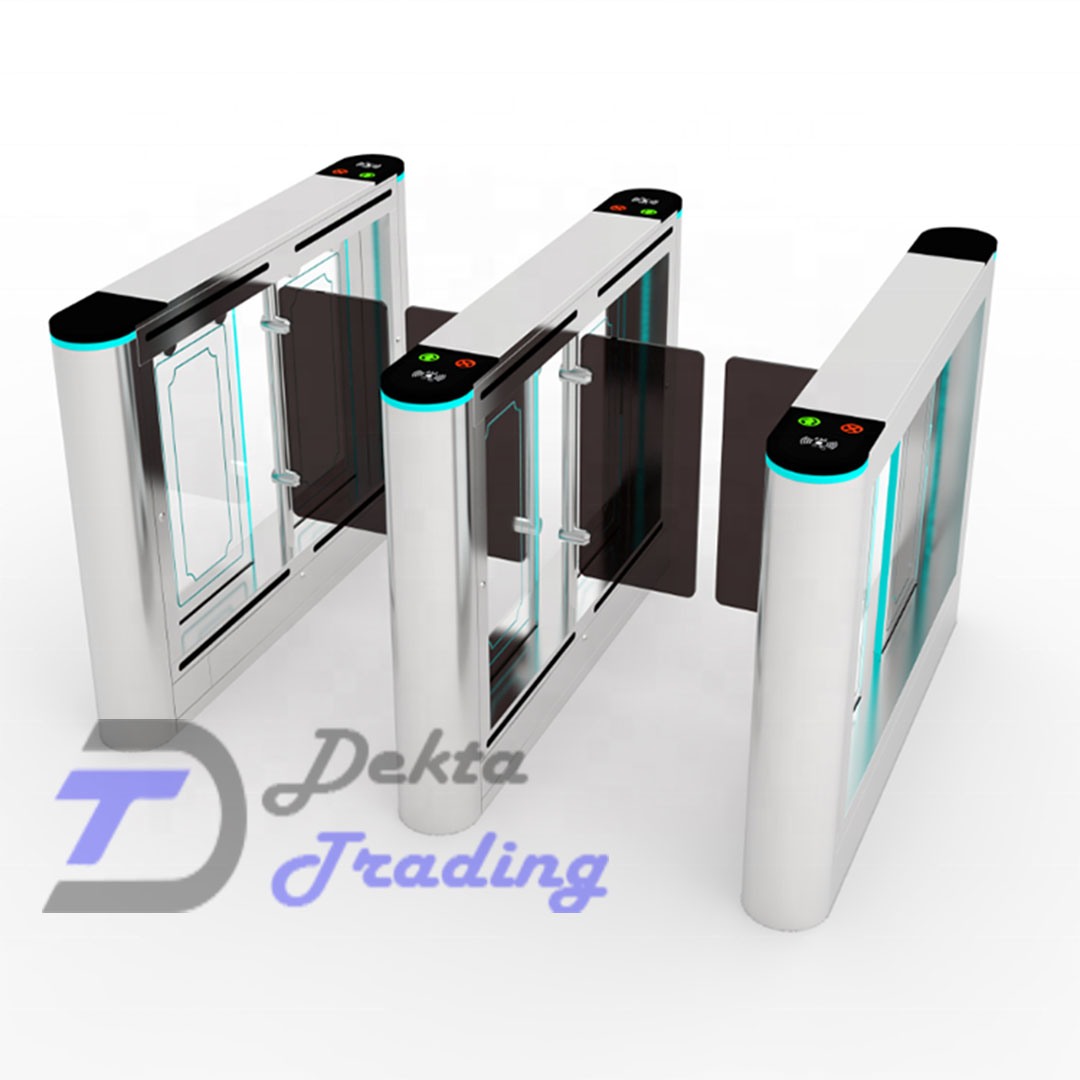

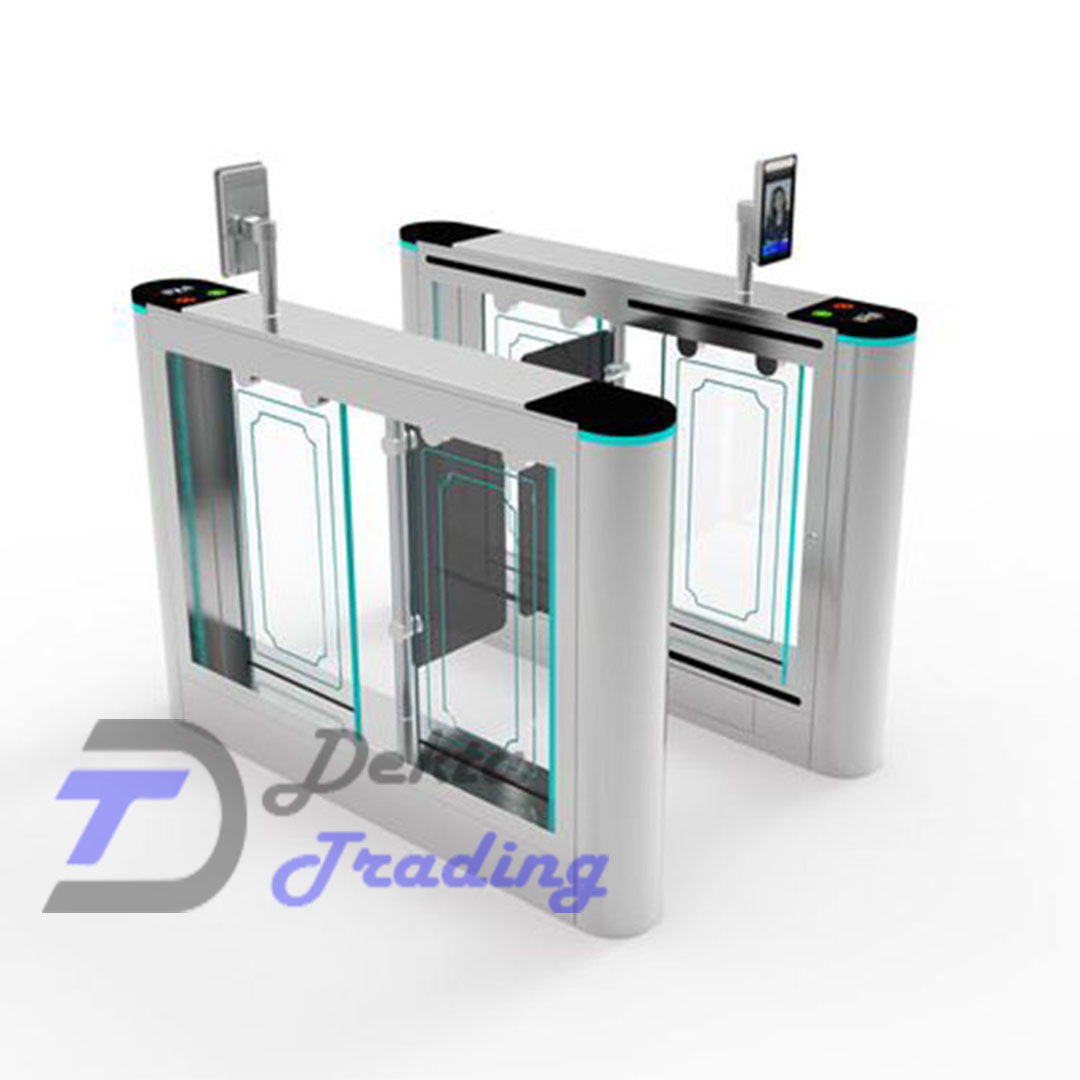

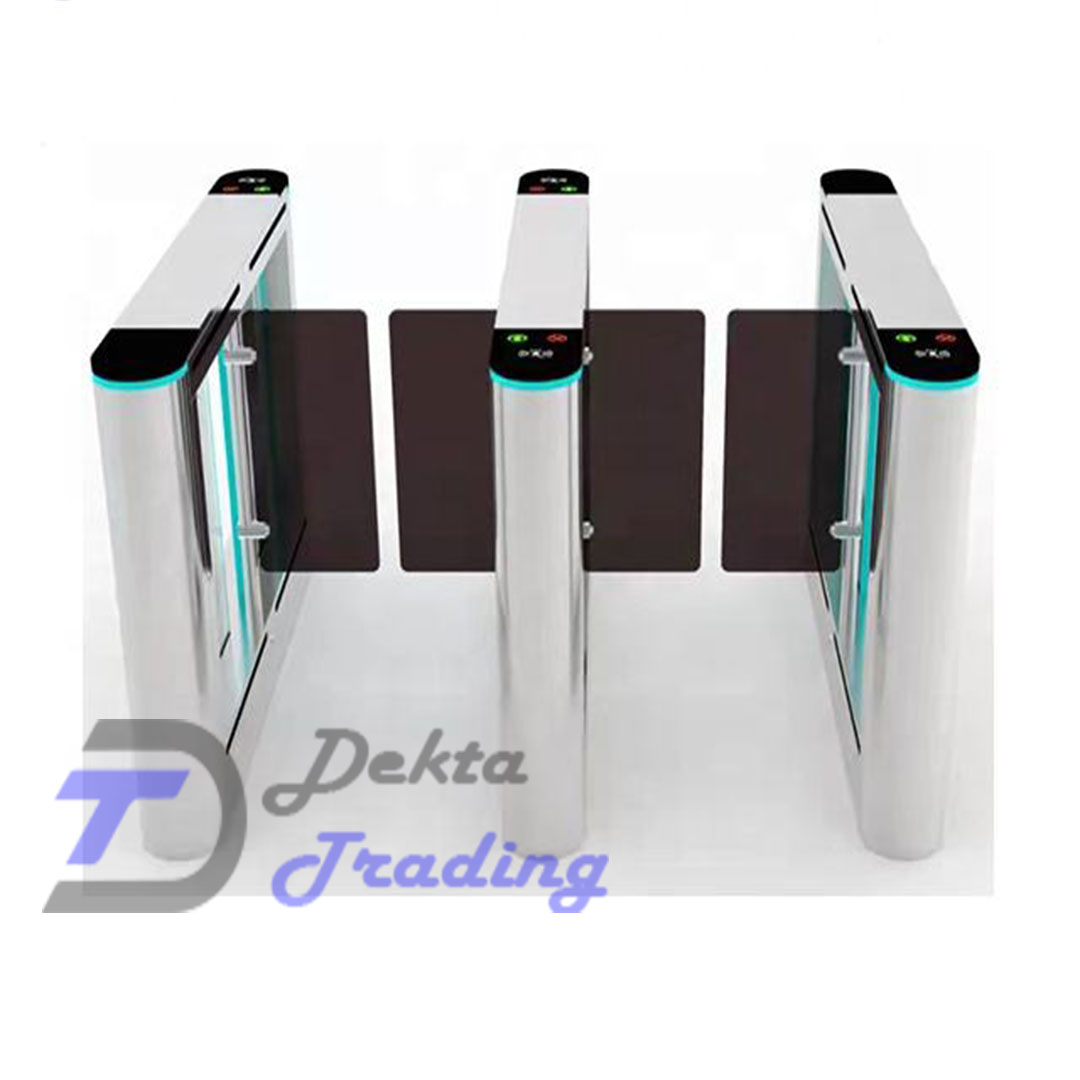

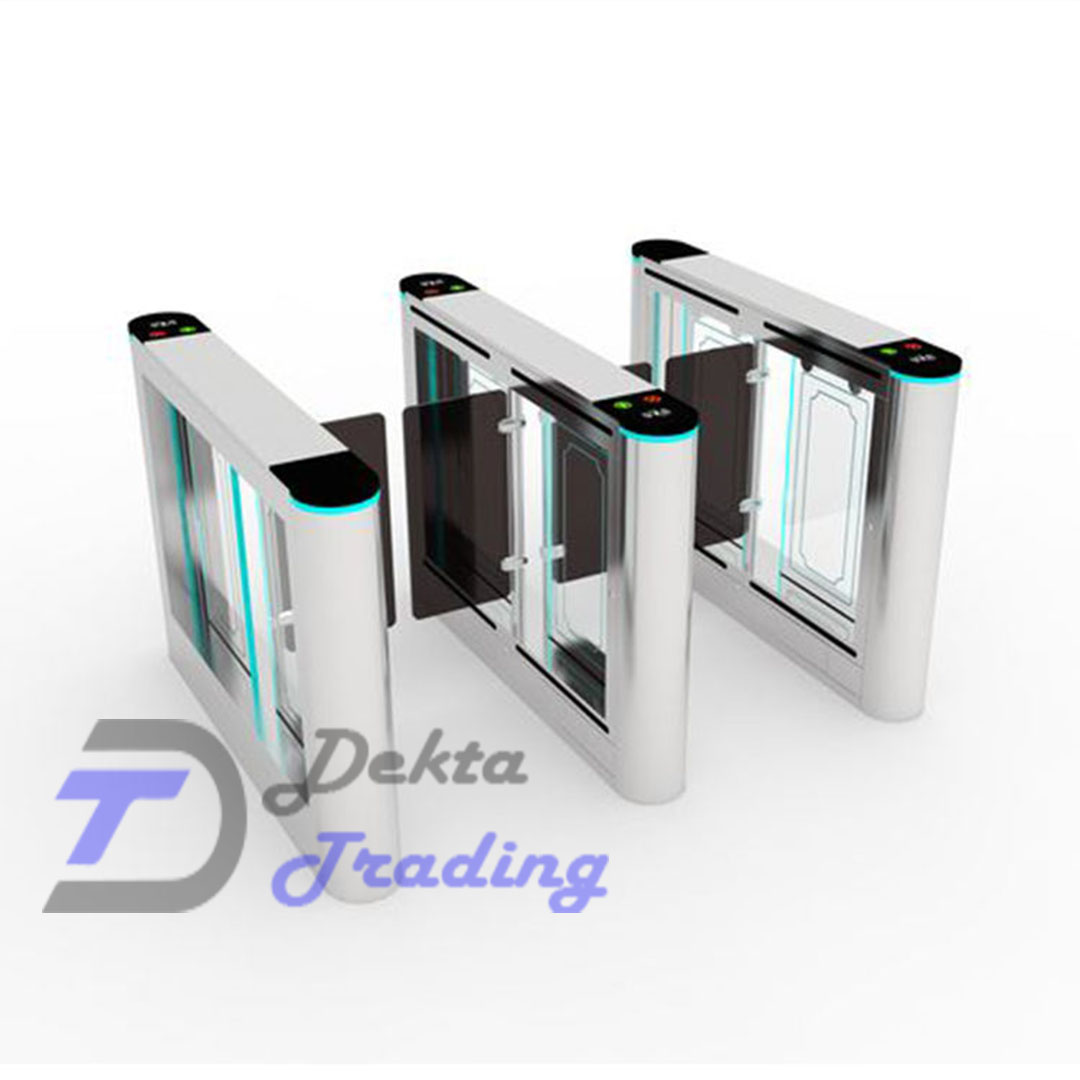

DMV-365 Swing Turnstiles

Model No: DMV-653S-SWT

Multi-Access Control Options: The gate supports various access control methods, including face recognition, IC/ID cards, QR code, barcode, and fingerprint scanning, providing flexibility for our customer, Sarah, who requires different authentication methods.

Durable Construction: Made from high-quality 304 stainless steel, the turnstile gate boasts a robust and corrosion-resistant design, guaranteed to withstand heavy usage and harsh environments.

Efficient Operation: Equipped with a DC brushless motor, the turnstile gate operates smoothly and quietly, ensuring a seamless user experience.

Customizable: The gate's bi-directional design and adjustable door opening mode allow for easy integration into various settings, including offices, shopping malls, and public facilities, as requested by our customer, Michael.

Technical Specifications
Key Attributes

Model: DMV-653S-SWT.

Material: 304 stainless steel.

Drive solenoid valve: 24V.

Power input: AC100-240V,50/60HZ.

Operation voltage: DC24V, 3A, Power: 40W.

Operation Humidity: 0~95%(No Freezing).

Operation Temperature: -10℃~+50℃.

Operation Environment: Indoor/outdoor.

Open Signal: Passive relay (dry contact).

Throughput Rate: 40-50 persons/minute.

Dimension: 1400*200*980mm(Customization acceptable).

Passage Width: 550-1000mm (Customization acceptable).

Passage direction: Single directional/Bi-directional(Optional).

Communication Interface: Standard RS485 interface, distance ≤1200 meters.

Production Process: CNC Laser Cutting,Grooving,Welding,Grinding,Assembly.

Automatic Reset Function: Automatically locked within set time(Time Adjustable).

Input Interface: Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA.

* The DMV-365 Swing Turnstiles is suitable for luxury and high-end entrance solutions.
* The whole system runs smoothly, with low noise, and high speed.
* Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
* There is a total of 5 pairs of infrared sensors The middle sensor is to prevent pinch pedestrians.
* Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm.
* LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
* Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
* Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
* Anti-bump, Anti clamp, The optical turnstiles come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.
